The question: “Did the quoted spread widen, and which side of the book is heavier?”

Did the quoted spread widen during the move?

The widget shows displayed order-book depth and quoted spread from a retained book sample.

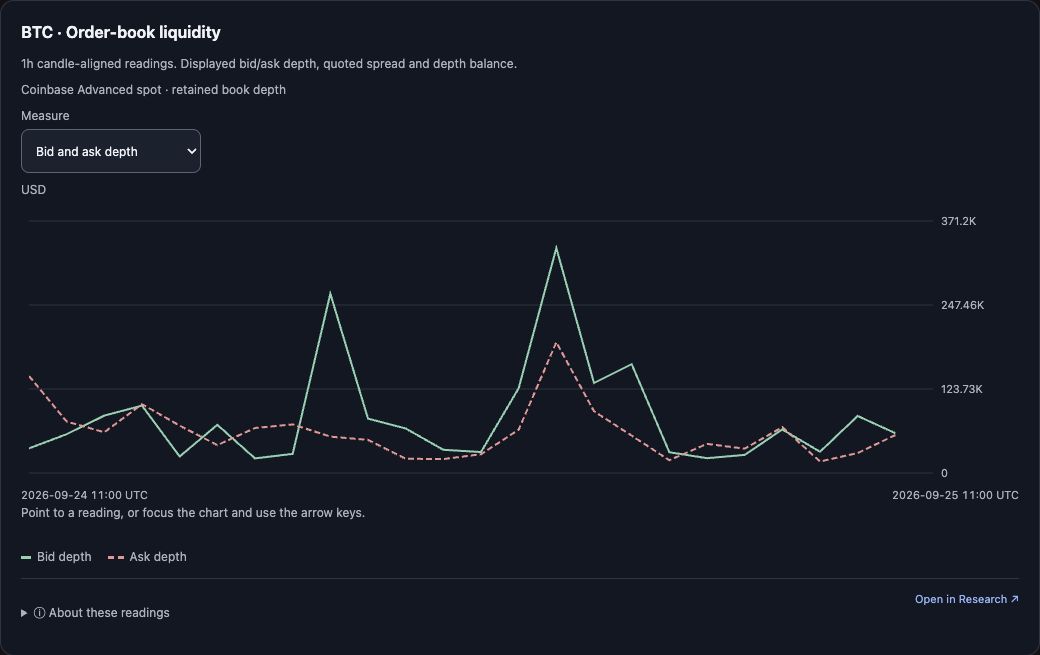

BTC order-book liquidity widget showing bid and ask depth lines in USD with the retained Coinbase Advanced spot scope

Captured 25 September 2026: BTC · Order-book liquidity with Measure = Bid and ask depth, 1h candle-aligned, 2026-09-24 11:00 → 2026-09-25 11:00 UTC. Select the image to view it full size.

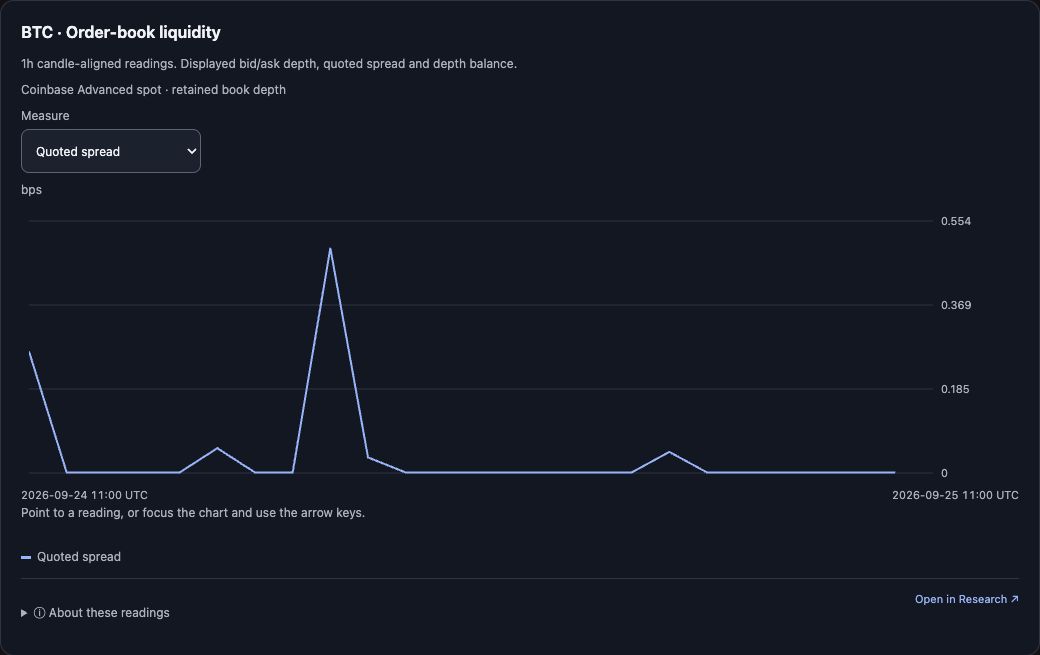

BTC order-book liquidity widget with Measure set to Quoted spread, showing a single spread line in basis points

Captured 25 September 2026: the same window with Measure = Quoted spread, plotted in bps. Select the image to view it full size.

Controls

  • Measure — Bid and ask depth, Quoted spread, or Depth balance for candle-aligned data.
  • Bid and ask depth: USD displayed on each side.
  • Quoted spread: the gap between best bid and ask in basis points.
  • Depth balance: the relative balance of displayed bids and asks as a percentage.
  • Legend follows the selected measure; the scope line reads Coinbase Advanced spot · retained book depth.
  • Shared controls: Expand when the host supports fullscreen, Get a fresh read, Open in Research ↗.

Units, selection and limits

  • Book readings are source-time snapshots, not traded volume and not candle totals.
  • The API qualifies each candle's final book. An unusable final snapshot is not replaced with an older reading; it stays a gap for that candle.
  • Displayed depth is a sample of quoted interest, not guaranteed execution liquidity; orders can change or be cancelled.

A useful follow-up

Show depth balance and tell me which side was heavier during the widest spread.
